Hole Saw Accessories

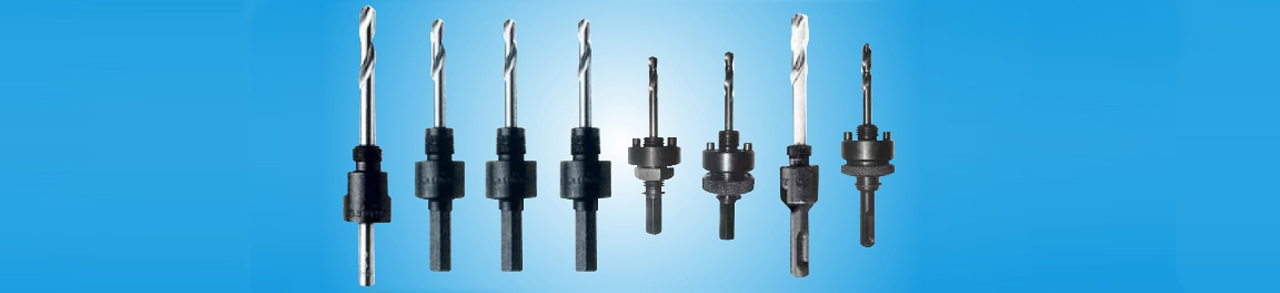

Arbor is the link between the hole saw and the drilling machine.
| Code No | Description | Suitable For | |
|---|---|---|---|
| HSA01 | Round Shank - 6mm (1/4") | 14 to 30mm (9/16-1.3/16") |  |
| HSA02 | Hex Shank - 6mm (1/4") | 14 to 30mm (9/16-1.3/16") |  |
| HSA03 | Hex Shank -9mm (3/8") | 14 to 30mm (9/16 -1.3/16") |  |
| HSA04 | Hex Shank - 11mm (7 /16") | 14 to 30mm (9/16 -1.3/16") |  |
| HSA05 | Quick Release, Hex Shank - 9mm (3/8") | 32 to 210mm (1.1/4 - 8.1/4") |  |
| HSA06 | Quick Release, Hex Shank - 11mm ( 7/16") | 32 to 210mm (1.1/4 - 8.1/4") |  |
| HSA07 | SDS Shank - 10mm (3/8") | 14 to 30mm (9/16 - 1.3/16") |  |
| HSA08 | Quick Release, SDS Shank - 10mm (3/8") | 32 to 210mm (1.1/4 - 8.1/4") |  |
Pilot Drill made of High Speed Steel is held by a set screw in the arbor body
| Code No | Description | |
|---|---|---|
| HSDO1 | Pilot Drill - 80mm (3.1/8") |  |
| HSDO2 | Pilot Drill - 102mm (4") |  |
Extension Bar is used for lengthening the reach of the drilling machine
| Code No | Description | Suitable For | |
|---|---|---|---|
| HSA01 | Extension Bar | HSA03, HSA04, HSA06 |  |
Ejector Spring fits over pilot drill and pushes the core out of hole saw once cut is over
| Code No | Description | |
|---|---|---|
| HSP | Ejector Spring |  |
Arbor Adaptor fits over small arbors to allow use of hole saws up to 6"/ 152mm diameter
| Code No | Description | Suitable For | |
|---|---|---|---|
| HSD | Adaptor | HSA01, HSA02, HSA03, HSA07 |  |
Set Screw locks the drill tightly in the arbor
| Code No | Description | |
|---|---|---|
| HSL | Grub Screw |  |
